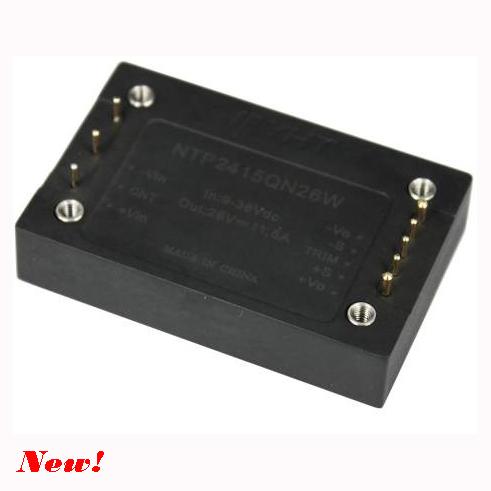

NTP2415QN26W Non-Isolated DC-DC Converters
Product Information:
Model: NTP2415QN26W
Quarter Brick：60.6mm×39.01mm×12.7mm
Wide Input Voltage（9.0Vdc～36.0Vdc）
Input Under Voltage Threshold（8.1Vdc～8.9Vdc）
Input Under Voltage Resume Point（9.0Vdc～10.0Vdc）
Negative Logic Control（0V to 1V turn on or CNT floating）
Output Voltage Adjust Range: ±10% of the rated output voltage
High Efficiency up to 96% typ.
Output Short-circuit Protection,automatic recovery
Over Temperature Protection(OTP)
Operating Ambient Temperature -40℃ to +70℃
Operating Case Temperature: -40℃ to +100℃
Maximum Load Current: 11.5AWarranty Period: 5-year
Applications: Telecom & Datacom ,Industry, and Rail transit &Railway application
Electrical Specification:
Input characteristic:
Input Voltage Range: 9-36Vdc
Under Voltage Threshold: 8.1- 8.9V
Under Voltage Resume Point: 9.0- 10V
Input Over Voltage Reference Point: 44-50V
Output characteristic:
Output Voltage: 26.0V （Voltage adjustable）
Output Current : 11.5A
Line Regulation: ±1%VO @Vin：9V～36V
Load Regulation: ±2%VO @Vin,nom，Io=0～11.5A
Ripple and Noise: 150mV Max. @Measured by 20MHz
Output Short-Circuit Protection: Continuous, Automatic Recovery
General characteristic:
Switching Frequency: 350KHz
Efficiency: 96% typical @Vin=24V，Io=11.5A
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Temperature Coefficient: ±0.02%/℃
Over Temperature Protection Reference Point : 100 -125℃ (110 ℃ Typ.)
Operating Ambient Temperature: -40℃ to +70℃
Operating Case Temperature: -40℃ to +100℃
Storage Temperature: -55℃ to +125℃
Our Services:
17 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,DC/DC Power Module,Non-Isolated DC/DC Converter
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
