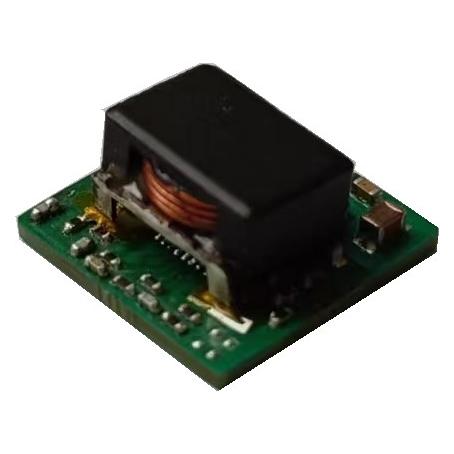

NTB1220DPD
The NTB1220DPD 20A Digital Non-isolated DC/DC Converters are widely used in Telecommunications, Electronic Data Processing, Distributed Power Architecture and Industry control.
Model: NTB1220DPD
Package 25.7mm×13.8mm×8.2mm
PMBus with the functions of monitor and configuration
Remote On/Off (turn on when left floating)
High Efficiency,94% typ.（input：12V，output：3.3V）
Synchronizes external clock/Current-sharing
Input Under-voltage Protection
Input Over-voltage Protection
Output voltage boundary limit
Operating Temperature: -40℃to +85℃
Output Short-circuit Protection
Output Current Limit Protection
Output Over-temperature Protection
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 4.5V-14V
Output characteristic:
Output Voltage: 0.6V-3.3V
Output Current : 20A
Ripple and Noise: 60mV Max. @See“The Ripple Test”
General characteristic:
Switching Frequency: 220KHz (min.) - 640KHz( max.) @PMBus configurable
Efficiency: 94% (typ.) @Vin=12.0V，20A，VO=3.3V
MTBF: 5×106h @Bellcore TR332,Tc=25℃
Temperature Coefficient: ±0.02%/℃
Case Temperature: -40℃ to +85℃
Storage Temperature: -55℃ to +125℃
