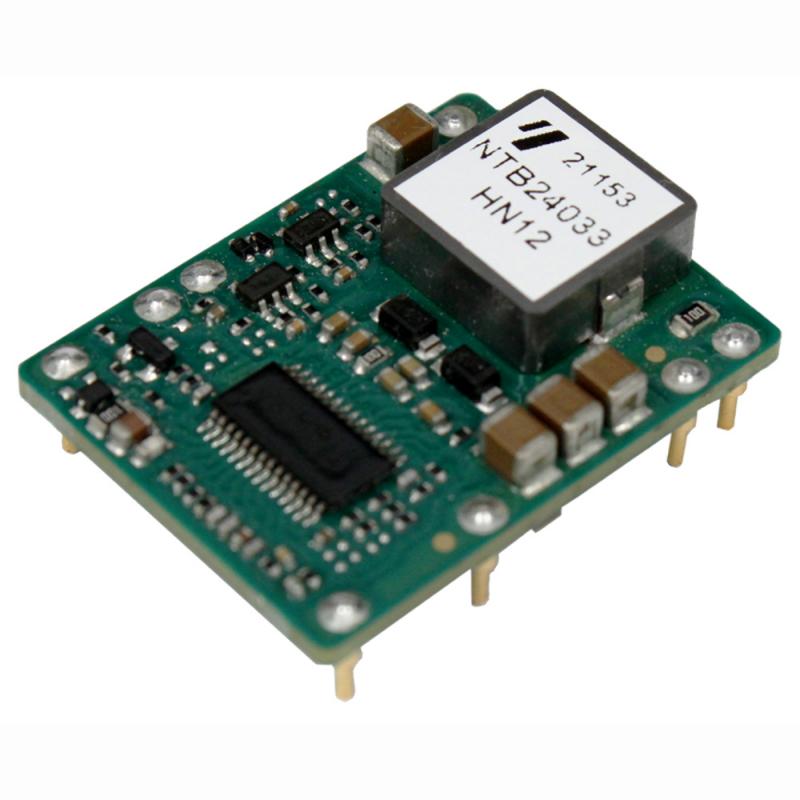

Non-isolated DC/DC Converter NTB24033HN12
The NTB24033HN12 Non-isolated DC/DC
Converters are widely used in Vehicle-mounted system,Telecommunication
equipments,Industrial control,Electric power, battery powered equipment,etc.
Model: NTB24033HN12
Package 33.0mm×25.4mm×11.0mm
Wide Input Voltage(6Vdc-36Vdc)
Negative Logic Control (low level or floating turn on)
High Efficiency: 96% typ.: Input Voltage
12.0V, Load current:3.3A;
95% typ.; Input Voltage 24.0V, Load current:3.3A
Short Circuit Protection,Auto Recovery
Over Temperature Protection(OTP)
Operating Temperature: -40℃ to +85℃
Max Load Current: 3.3A
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 6Vdc-36Vdc
Under Voltage Threshold: 4.5- 5.5V
Maximum Input Voltage: 50V Max. @ IO=3.3A,Power up 1 minute without damage
Over Voltage Surge: 60V Max. @IO=3.3A,Power up 50 milliseconds without damage
Output characteristic:
Output Voltage: 12.0V
Output Current : 3.3A
Line Regulation: ±0.3%VO @Vin=6V-36V, IO=3.3A
Load Regulation: ±0.5%VO @Vin,nom, IO=0～3.3A
Ripple and Noise: 100mV Max. @Measured by 20MHz
Short-Circuit Protection: Continuous, Automatic Recovery
General characteristic:
Switching Frequency: 400KHz
Efficiency: 96% typical @Vin=12V，IO=3.3A
95% typical @Vin=24V，IO=3.3A
MTBF: 5×106h @Bellcore TR332,Tc=25℃
Temperature Coefficient: ±0.02%/℃
Over Temperature Protection Reference Point : 100 -120℃ (110 ℃ Typ.)
Case Temperature: -40℃ to +85℃
Storage Temperature: -55℃ to +125℃
