DC/DC Converters WSD75-100W Series Sixteen Brick

Wide input 18-75V,75-100W Isolated DC/DC Converters with Sixteen brick Footprint and 92% Typ. High Efficiency

  • Item no.:

    WSD75-100W Series
  • Product origin:

    China
  • Color:

    Green
  • Min order:

    50
  • Product weight:

    18G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    6-8 Weeks
  • Product Details

DC-DC Converter WSD75-100W Series


Applications: Telecom / Datacom system equipments, Railway & Rail transit ,Industrial control equipments and Instrument.


Product Information:

Model: WSD75-100W Series

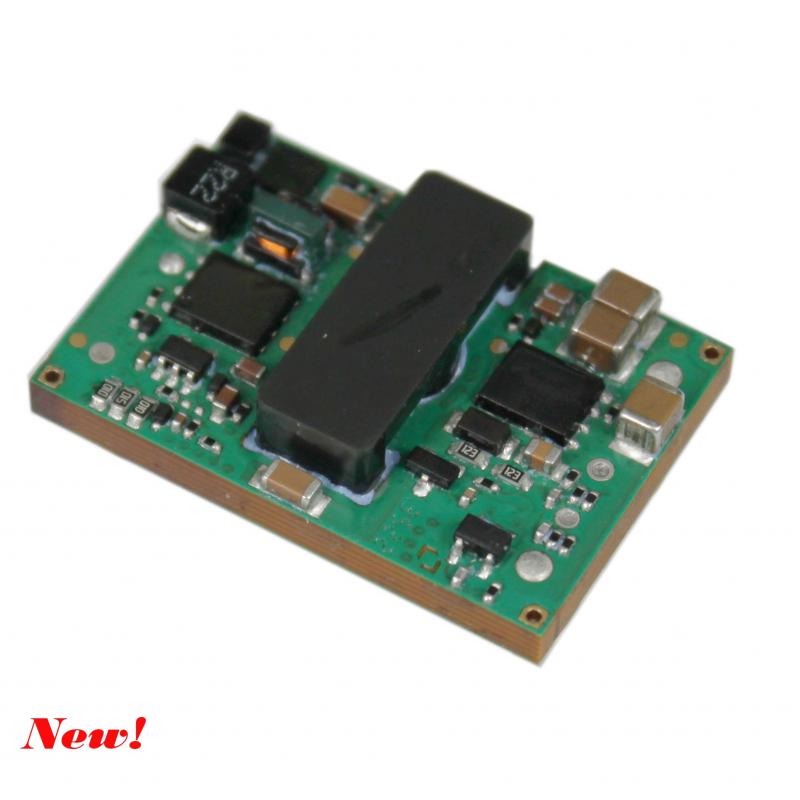

Industry Standard Sixteenth-brick

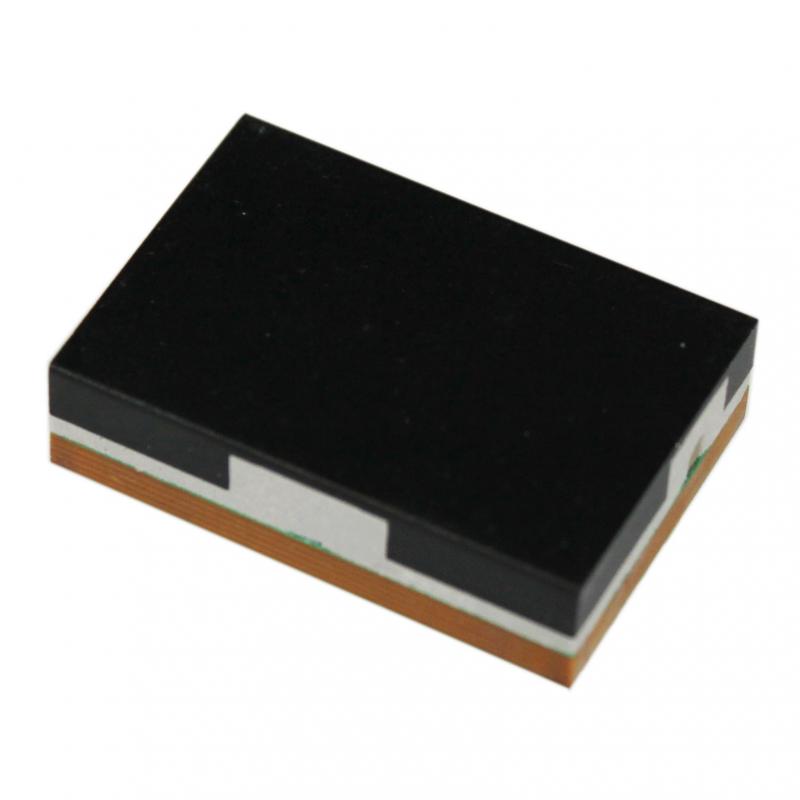

Without metal baseplate: 33.0×22.9×10.7mm,With metal baseplate:   33.0×22.9×12.7mm

Ultra High Power Density: 11W/cm3 Without metal baseplate,9.2W/cm3With metal baseplate

Input Under Voltage Protection14V to 18V turn off

Positive Logic Control3.5V to 15.0V or floating turn on

Output Over Voltage Protectionauto-recovery (13.8V to 18V

Output Voltage Adjust Range: -20%~+10%Vo,nom of the rated output voltage

Output Over Current Protection Range ( 6.56A  to 11.9 A)

Output Short-time Short-circuit Protection

High Efficiency,92% typ.48V,full load

1500Vdc Min. Isolation Voltage

Operation Ambient Temperature: -40 to +85

Over Temperature Protection: 115Without metal baseplate,100With metal baseplate

Warranty Period: 5-year


Electrical Specification:

Input characteristic:

Input Voltage Range:  18-75Vdc


Output characteristic:

Output Voltage/Current : 12V/6.25A

Line Regulation:   ±0.3% V0

Load Regulation:  ±0.5% V0

Ripple and Noise: 120mV (typ.)

Temperature Coefficient: ±0.02%/℃


General characteristic:

Switching Frequency: 300KHz(typ.)

High Efficiency :92% typ.

MTBF: 2×106h @Bellcore TR332,Tc=25℃

Operating Baseplate Temperature:  -40℃ to +85℃

Storage Temperature: -55℃ to +125℃

Vibration: SineFrequency10Hz-55HzAmplitude:0.35mm30 min in each of 3 perpendicular directions

Shock: Half sine, peak acceleration:300m/s², duration:6 ms ; continuous 6 times of pulse in each of 3 perpendicular directions


Our Services:

15 years experience of converter industry.

5 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

EMC,ROHS Certificate and Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,Isolated DC/DC Converter


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
