DC-DC Converters RAHS200-110B12(-Y)
This series are widely used in Telecommunication electronic data processing, distributed power architecture, Industry and Rail transit& railway application
Product Information:
Half-Brick Size：
RAHS200-110B12 (61.0mm×57.9mm×12.7mm)

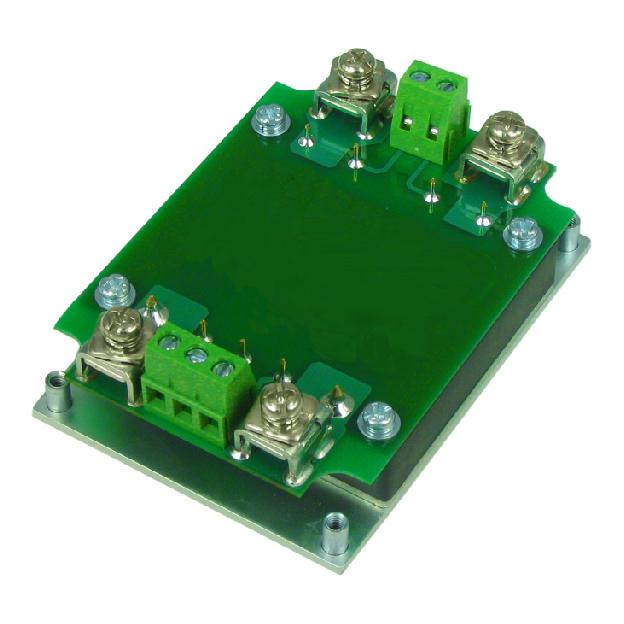

RAHS200-110B12-Y(85.0mm×61.0mm×29.7mm)
Input Under Voltage Protection（32V to 41V Turn off）
Positive Logic Control（3.5V to 15V Turn on）
Output Over Voltage Protection（OVP）
Output Voltage Adjust Range: ±10 % of the rated output voltage
Output Short-circuit Protection: hiccup,auto-recovery
Typical Efficiency up to 88%（110V,full load）
1500Vac Isolation Voltage
Operating Ambient Temperature:-40℃ to +85℃
Over Temperature Protection: 110℃ Typ.
Meets requirement of Standard EN50155
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 43-160Vdc
Output characteristic:
Output Voltage/Current : 12Vdc /16.66A
Line Regulation: ±0.2% max. Vo
Load Regulation: ±0.5% max. Vo
Ripple and Noise: 200mV (Max.) @20MHz bandwidth
General characteristic:
Switching Frequency: 250KHz (typ.)
Efficiency: 88% (typ.)
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Operating Case Temperature: -40℃ to +100℃
Operating Storage Temperature: -55℃ to +125℃
Temperature Coefficient: ±0.02%/℃
Shock And Vibration : Meets EN50155 / EN61373
EMC Specifications:
EMI Conducted Emission : EN55032 CLASS A
Surge Immunity: IEC/EN61000-4-5 line to line(±1kV/2Ω) CLASS B
Fast Transient : IEC/EN61000-4-4 ±2kV(5/50ns, 5kHz) CLASS A
