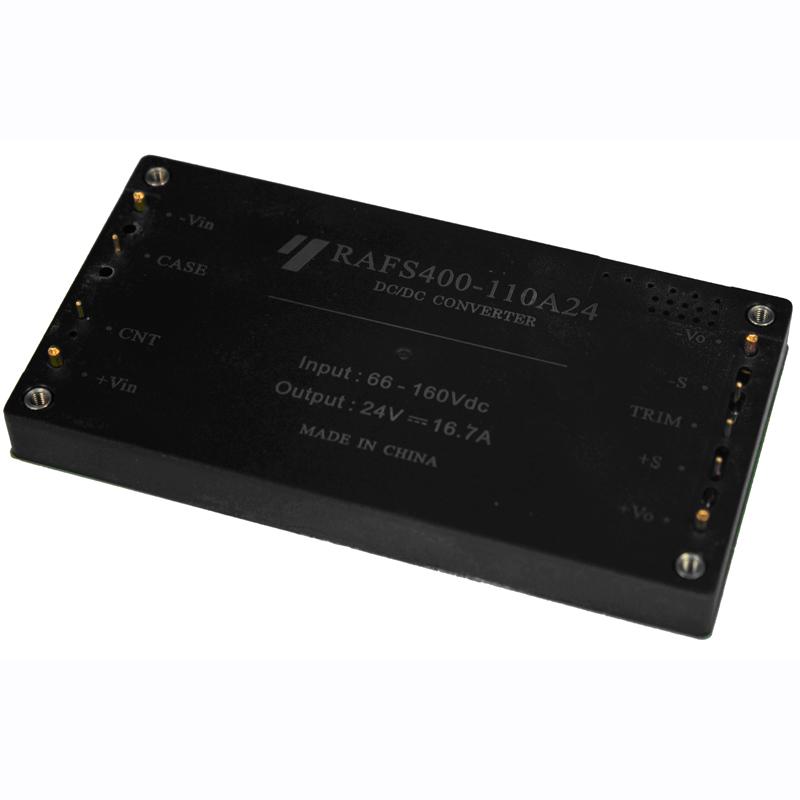

DC-DC Converter RAFS400-110A24
The RAFS400-110A24 DC-DC Converters are widely used in Industry, Railway and Rail transit etc.
Product Information:
Model: RAFS400-110A24
Full Brick (116.8mm×61.0mm×12.7mm)
Input Under Voltage Protection (55V to 65V turn off）
Positive Logic Contro l(3.5V to 15V turn on)
OVP, OCP, 115℃ Typ. Over Temperature Protection
Output Short-circuit protection, hiccup,auto-recovery
Typical Efficiency 88% (110V，full load)
1500Vac I/O Isolation
Operating Ambient Temperature:-40℃ to +70℃
Meets requirements of Standard EN50155
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 66-160Vdc (110V typ.)
Output characteristic:
Output Voltage/Current : 24V / 16.7A
Line Regulation: ±0.3% max. Vo
Load Regulation: ±0.5% max. Vo
Ripple and Noise: 200mV (typ.)
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 200KHz (typ.)
Efficiency: 88% (typ.)
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +100℃
Storage Temperature: -55℃ to +125℃
Shock : Half sine,peak acceleration:300m/s², duration:6 ms ; continuous 6 times of pulse in each of 3 perpendicular directions
Vibration : Sine，Frequency:10Hz-55Hz,Amplitude:0.35mm,30 min in each of 3 perpendicular directions
Our Services:
15 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,400W Converter DC To DC
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
