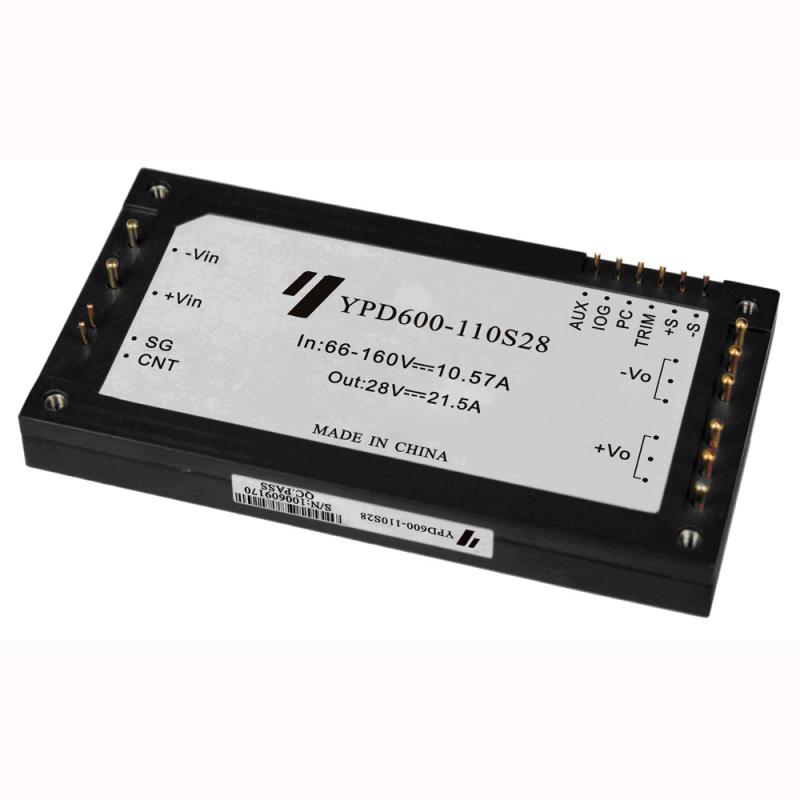

DC-DC Converter YPD600-110S28
The YPD600-110S28 DC-DC Converter can be connected to increase power in parallel. Besides input pins and output pins are connected in parallel, the PC pins should be connected.Achieve up to 1200W realised by connecting 2 units in parallel.
Product Information:
Model: YPD600-110S28
Full Brick（116.8mm×61.0mm×13.2mm）
Input Under Voltage Protection（55V to 65V Turn off）
Negative Logic Control（Turn on Between -0.7V to 0.7V）
Output Over Voltage Protection（32.2V to 40.6V）
Output Voltage Adjust Range:±10% of therated output voltage
Output Short-circuit Protection, hiccup, auto-recovery
5% output Current Sharing
High Efficiency up to 90%（110V, full load）
1500Vac Isolation Voltage
115℃ typ. Over Temperature Protection
Applications: Telecommunication electronic data processing,distributed power architecture and Railway & Rail transit.
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 66-160Vdc (110V typ.)
Output characteristic:
Output Voltage/Current : 28V / 21.5A
Line Regulation: ±0.2% max. Vo
Load Regulation: ±0.5% max. Vo
Ripple and Noise: 280mV (Max.)
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 250KHz (typ.)
Efficiency: 90% (typ.)
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +100℃
Storage Temperature: -55℃ to +125℃
Shock : Half sine,peak acceleration:300m/s², duration:6 ms ; continuous 6 times of pulse in each of 3 perpendicular directions
Vibration : Sine，Frequency:10Hz-55Hz,Amplitude:0.35mm,30 min in each of 3 perpendicular directions
Our Services:
15 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,600W DC DC Converter
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
