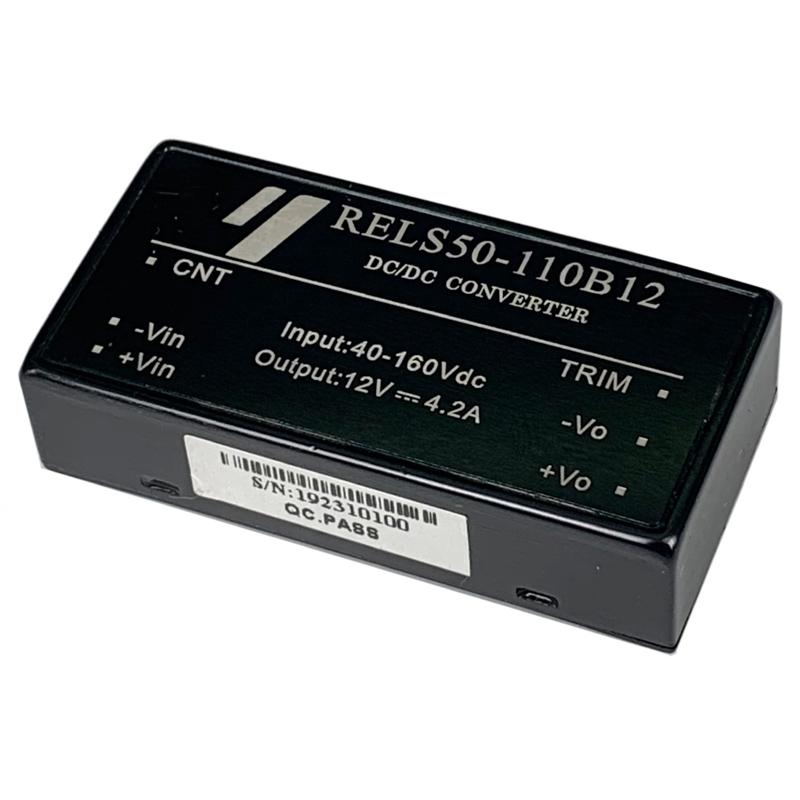

DC-DC Converters REL50W Series
Product Information:
Model: REL50W Series
1in.×2in.Industry Standard Size（50.8mm×25.4mm×12.7mm）
Wide Input Voltage (9-36V,40-160V）
Positive Logic Control (3.5V to 15V turn on)
Output Over Current Protection
Output Short-circuit protection, hiccup,auto-recovery
High efficiency, 90% typ.(Input 110V, Io,max.)
1650Vac Isolation Voltage
Operating Ambient Temperature:-40℃ to +85℃
Meets Requirements Of Standard EN50155
Warranty Period: 5-year
Widely used in Industry and Railway&Urban rail transit etc.
Electrical Specification:
Input characteristic:
Input Voltage Range: 9-36Vdc, 40-160Vdc
Output characteristic:
Output Voltage/Current : see tables - technical datasheets
Line Regulation: ±0.2% max. Vo
Load Regulation: ±0.5% max. Vo
Ripple and Noise: 120mV ( Max.)
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 200KHz (typ.)
Efficiency: 90% (typ.)
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +105℃
Storage Temperature: -55℃ to +125℃
Shock And Vibration : Meets EN50155
EMC Specifications:
EMI Conducted Emission : EN55032 CLASS A
Surge Immunity: IEC/EN61000-4-5 line to line(±1kV/2Ω) CLASS B
Fast Transient : IEC/EN61000-4-4 ±2kV(5/50ns, 5kHz) CLASS A
Our Services:
15 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
