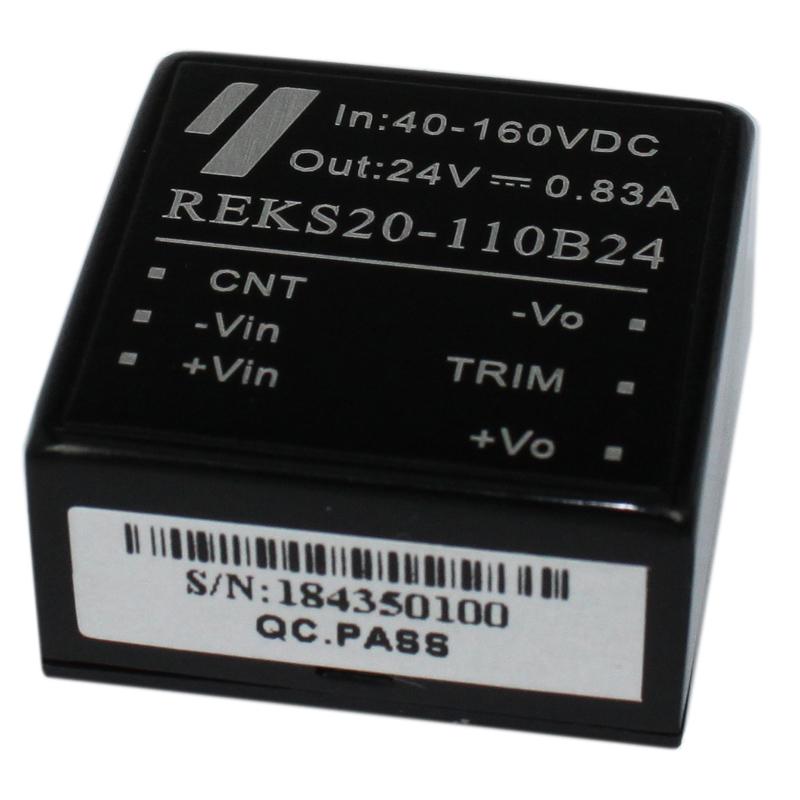

DC-DC Converters REK20W Series
Product Information:
Model: REK20W
1in.×1in.Industry Standard Size（25.4mm×25.4mm×12.7mm）
Wide Input Voltage (9-36V,40-160V）
Positive Logic Contro (3.5V to 15V turn on)
Output Over Current Protection
Output short-circuit protection, hiccup,auto-recovery
High efficiency, 87% typ.(Input 110V, Io,max.)
1500Vac Isolation Voltage
Operating Ambient Temperature:-40℃ to +85℃
Meets Requirements Of Standard EN50155
Warranty Period: 5-year
Electrical Specification:
Input characteristic:
Input Voltage Range: 9-36Vdc, 40-160Vdc
Output characteristic:
Output Voltage/Current : see tables - technical datasheets
Line Regulation: ±0.2% max. Vo
Load Regulation: ±0.5% max. Vo
Ripple and Noise: 100mV ( typ.)
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 270KHz (typ.)
Efficiency: 87% (typ.)
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +105℃
Storage Temperature: -55℃ to +125℃
Shock And Vibration : Meets EN50155
EMC Specifications:
EMI Conducted Emission : EN55032 CLASS A
Surge Immunity: IEC/EN61000-4-5 line to line(±1kV/2Ω) CLASS B
Fast Transient : IEC/EN61000-4-4 ±2kV(5/50ns, 5kHz) CLASS A
Our Services:
15 years experience of converter industry.
5 Years Warranty.
Fast response for any question within 24 hours.
Full technical support before/after sales.
Customized products available (OEM, ODM).
ROHS Compliance
FAQ:
Q: what can you buy from us?
A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply,DC DC Converter Module
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: Is it acceptable to print my logo on the product?
A: Yes. based on a certain purchase quantity,we can make OEM logo.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 or 5-year warranty for our products.
Q: What if I cannot find what I need on your products list?
A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
