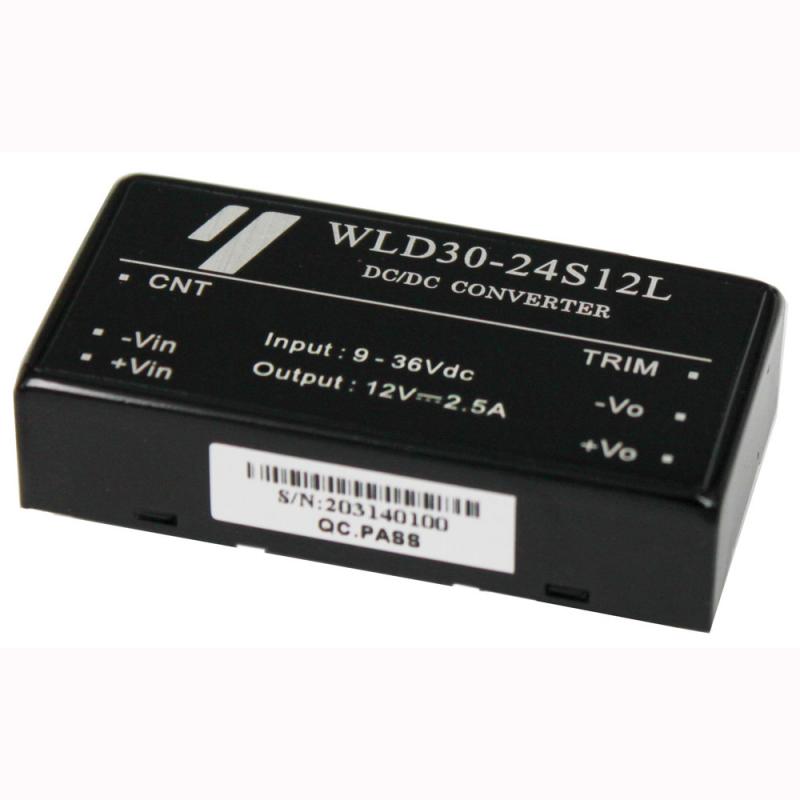

DC-DC Converter WLD30-24S12L
The WLD30-24S12L is widely used in Telecom / Datacom system equipments and Railway & Rail transit ,Industrial control equipments and Instrument.
Product Information:
Model: WLD30-24S12L
1in.×2in.Industrial Standard Size（50.8 mm×25.4 mm×12.7 mm）
Wide Input Voltage（9V～36V）
Positive Logic Control（3.5V～15V turn on）
Input Under Voltage Protection
Output Voltage Adjust Range:±10 % of the rated output voltage
Output Over Voltage Protection（OVP）
Output Short-circuit Protection, hiccup, auto-recovery
High Efficiency,90% typ.(Input 24V, full load）
1500Vdc Min. Isolation Voltage
Operating Case Temp:-40℃ to +105℃
Warranty Period: 5-year
Ce Certificate (WLD30-24S12)
Electrical Specification:
Input characteristic:
Input Voltage Range: 9-36Vdc
Output characteristic:
Output voltage/Current : 12V/2.5A
Line Regulation: ±0.2% max.
Load Regulation: ±0.5% max.
Ripple and Noise: 100mV Max @Vin:9V～36V ,20MHz bandwidth
Temperature Coefficient: ±0.02%/℃
General characteristic:
Switching Frequency: 300KHz
Efficiency: 90% typical.
MTBF: 2×106h @Bellcore TR332,Tc=25℃
Case Temperature: -40℃ to +105℃
Storage Temperature: -55℃ to +125℃
