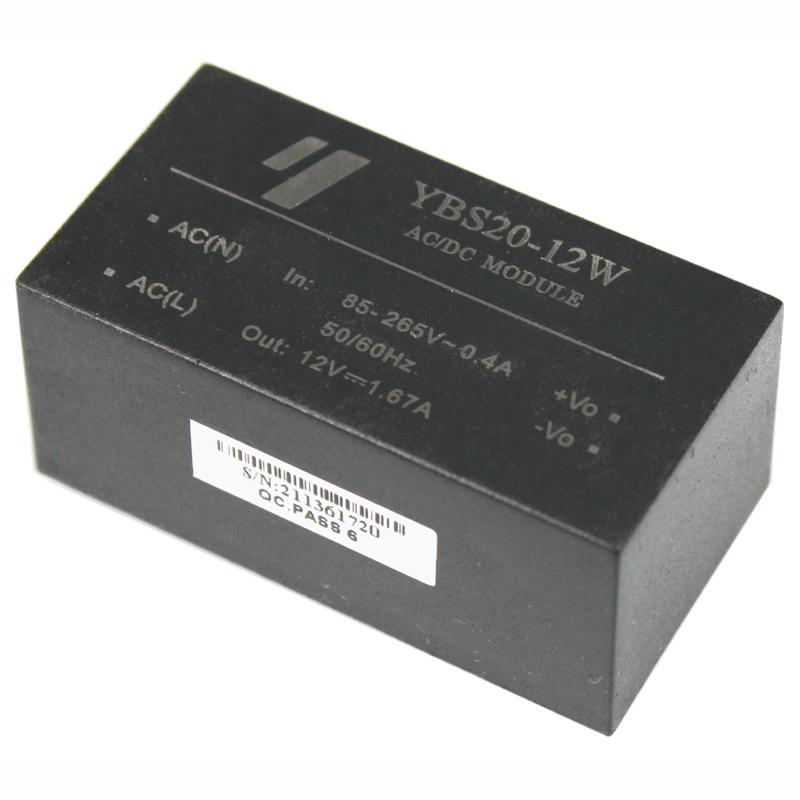

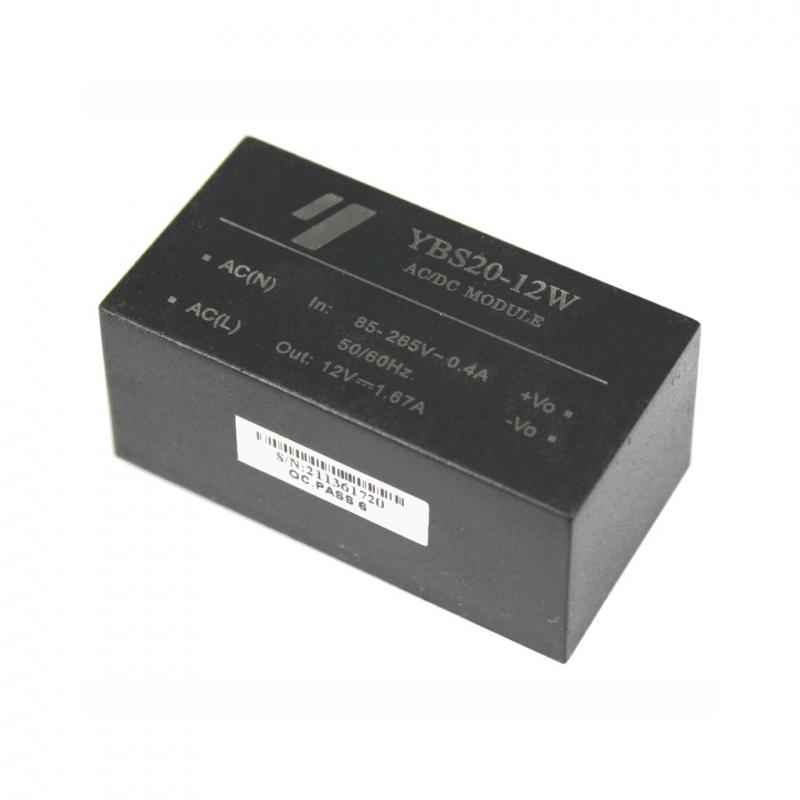

AC-DC Power Modules YBS20W Series

Designed for 20W AC/DC Power Modules with features of low standby loss and 3000Vac I/O Isolation Voltage.
  • Item no.:

    YBS20W Series
  • Product origin:

    China
  • Color:

    black
  • Min order:

    50
  • Product weight:

    50G
  • Shipping port:

    FOB Beijing
  • Lead Time:

    8-12 weeks
  • Product Details

AC to DC Power Modules YBS20W Series


The YBS20W Series AC/DC Power Modules are widely applicable to Telecom& datacom ,rail transit, electric power automation, industrial automatic control,  instrument, electric vehicles and new energy etc.


Product Information:

Model: YBS20W Series

Miniaturization Size  53.8mm×28.8mm×23.5mm

Wide Input Range 85Vac to 265Vac

3000Vac Isolation Voltage (input to output)

100kHz Switching Frequency

Short Circuit Protection , Auto Recovery

Operating Ambient Temperature: -4070

Cooled mode : Natural air cooling

100% Burn-in

Case material: Black flame retardant plastic

2-year warranty


Electrical Specification:

Input characteristic:

AC Input Voltage Range : 85Vac to 265Vac

DC Input Voltage Range : 100Vdc to 370Vdc

Input Frequency : 45 -65 Hz

Shock Current: 25A @220Vac


Output characteristic:

Output voltage : see table- technical datasheet

Line Regulation:  ±0.5%Vo @Full Load

Load Regulation: ±0.1%Vo @10%~100% Load

Output Overshoot : ±10%Vo

Ripple and Noise:  50mV typical, 100mV max. @Measured by 20MHz

Temperature Coefficient:  ±0.2% per℃(Max)

Short-Circuit Protection: Continuous, Automatic Recovery


General characteristic:

Switching Frequency: 100KHz

Efficiency: 74%-85% typical

MTBF: 3×105h @Bellcore TR332,Tc=25℃

Case Temperature:      -40℃ to +70℃

Storage Temperature: -40 to +105


EMC:

Conducted disturbance : CISPR22/EN55022CLASSB

Surges: IEC/EN61000-4-5 ±1KV(Bare machine)

Fast transients: IEC/EN61000-4-4 ±2KV(Bare machine)


Our Services:

Free sample requested is available.

15 years experience of converter industry.

2 Years Warranty.

Fast response for any question within 24 hours.

Full technical support before/after sales.

Customized products available (OEM, ODM).

CE,ROHS,EMC Certificate or Compliance


FAQ:

Q: what can you buy from us?

A: AC-DC Converter,DC-DC Converter,Power Module, Power Converter,Module Power Supply


Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: Is it acceptable to print my logo on the product?

A: Yes. based on a certain purchase quantity,we can make OEM logo.


Q: Do you offer guarantee for the products?

A: Yes, we offer 2 or 5-year warranty for our products.


Q: What if I cannot find what I need on your products list?

A: What we list are standard types of AC-DC Converter,DC-DC Converter, if can't find what you needed, please tell us, we will send you the technical datasheet on email.
